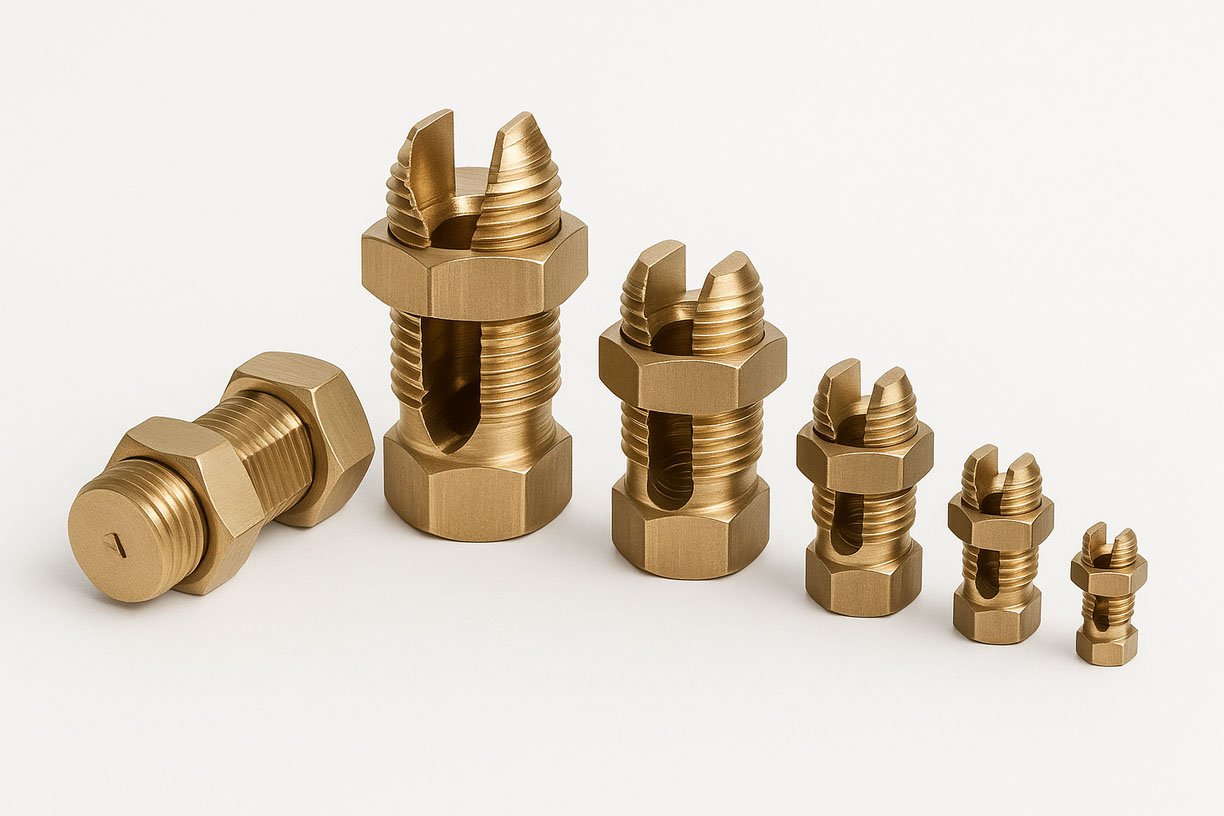

Brass Split Bolt Connectors Line Taps Split Bolts
Brass Split Bolt Connectors Line Taps Split Bolts
Professional Line Tap and Split Bolt Connection Solutions
Engineered for reliable electrical line tapping and conductor connections, our comprehensive range of Brass Split Bolt Connectors and Line Taps delivers superior performance for electrical distribution and power line applications. Manufactured from high tensile brass to BS 2874 CZ 112 standards with rolled threads for extra clamping force, these connectors provide optimal electrical conductivity and mechanical reliability. Available in natural brass and electro-tinned finishes with comprehensive sizing from 10mm² to 500mm², our split bolt connectors feature extruded pressure pads (not cast) to prevent cracking and ensure long-term durability in demanding electrical environments.
Key Specifications
-
-
Size Range:
10mm² to 500mm²
-
Finishes:
Natural Brass, Electro-Tinned
Technical Specifications
High Tensile Brass Construction
Manufactured from high tensile brass conforming to BS 2874 CZ 112 standards, ensuring superior mechanical strength, electrical conductivity, and corrosion resistance for demanding line tapping and conductor connection applications.
Rolled Thread Technology
Threads are formed by rolling process giving the nut extra clamping force and superior mechanical properties compared to cut threads, ensuring reliable connections and long-term performance in electrical applications.
Extruded Pressure Pads
Pressure pads are made from extruded bars (NOT CAST), preventing the pads from cracking and ensuring reliable conductor contact and connection integrity throughout the service life of the connector.
International Standards Compliance
Manufactured to meet material and dimensional specifications laid by different international standards, ensuring global compatibility and professional-grade quality for electrical distribution applications.
Complete Size Chart & Product Codes
| Conductor mm² | C mm | Product Code No. |
|---|---|---|
| 10 | 4.50 | SBC-10 |
| 16 | 6.00 | SBC-16 |
| 25 | 6.90 | SBC-25 |
| 32-35 | 8.10 | SBC-32 |
| 50 | 9.70 | SBC-50 |
| 70 | 11.2 | SBC-70 |
| 95 | 13.6 | SBC-95 |
| 100 | 14.0 | SBC-100 |
| 120 | 15.0 | SBC-120 |
| 150 | 16.6 | SBC-150 |
| 185 | 18.2 | SBC-185 |
| 240 | 21.4 | SBC-240 |
| 300 | 23.7 | SBC-300 |
| 400 | 26.2 | SBC-400 |
| 500 | 30.1 | SBC-500 |
Complete Product Range
Brass Split Bolt Connectors
High tensile brass split bolt connectors manufactured to BS 2874 CZ 112 standards with rolled threads for extra clamping force, available in comprehensive sizes from 10mm² to 500mm² for professional electrical connections.
Line Taps & Split Bolts
Professional line taps and split bolts designed for electrical distribution and power line applications, featuring extruded pressure pads to prevent cracking and ensure reliable conductor connections.
Copper Split Bolt Connectors
High conductivity copper split bolt connectors for applications requiring maximum electrical performance, available in the same comprehensive size range with superior conductivity characteristics.
Electro-Tinned Finish Options
Available in natural brass and electro-tinned finishes, providing enhanced corrosion protection and improved electrical conductivity for demanding environmental conditions and long-term reliability.
Professional Electrical Distribution Applications
Our split bolt connectors and line taps are essential components for electrical distribution systems, power line installations, and conductor connections where reliable tapping and joining of electrical conductors is required. These connectors are widely used in utility applications, industrial power distribution, and electrical infrastructure projects.
Key Benefits
- BS 2874 CZ 112 high tensile brass construction
- Rolled threads for extra clamping force
- Extruded pressure pads prevent cracking
- Comprehensive size range 10mm² to 500mm²
- Natural brass and electro-tinned finishes
- International standards compliance
