Earthing Equipments
Earthing Equipments
Complete Professional Earthing and Grounding System Solutions
Engineered for comprehensive electrical safety and grounding applications, our extensive range of Earthing Equipments delivers superior performance for professional electrical installations. Our complete earthing system includes Copper Bonded Earth Grounding Rods manufactured from high tensile low-carbon steel complying with BS 4360 Grade 43A, molecularly bonded with 99.99% pure high conductivity copper. We also provide Solid Copper Earth Rods, comprehensive Earth Clamps including Rod to Tape, Rod to Conductor, and Rod to Cable Lug configurations, along with professional earthing accessories. Each component is engineered for optimal electrical conductivity, corrosion resistance, and long-term reliability in demanding earthing and lightning protection applications.
Key Specifications
-
-
Copper Purity:
99.99% Pure Copper
-
Rod Dimensions:
9.5mm to 25mm Diameter
Technical Specifications
Premium Material Construction
Manufactured from high tensile low-carbon steel complying with BS 4360 Grade 43A standards, molecularly bonded with 99.99% pure high conductivity copper bonding, ensuring superior electrical performance and corrosion resistance for demanding earthing applications.
Advanced Manufacturing Process
Each grounding rod is treated with Benzol-triazole derivatives for enhanced corrosion protection. Threads are formed by roll threading process providing extra strength and eliminating risk of chipping during installation.
Comprehensive Size Range
Available in extensive dimensions from 9.5mm to 25mm diameter and lengths from 1200mm to 3000mm, with threaded (9/16", 5/8", 3/4") and unthreaded options to meet diverse earthing system requirements.
Professional Packaging & Protection
Each rod is individually packed in PVC tube bags with protective black caps at both ends, preventing thread damage during handling and ensuring product integrity throughout transportation and storage.
Copper Bonded Earth Rod Specifications
| Rod Dimension (mm) | Thread Diameter | Actual Rod Dia. (mm) | Component No. |
|---|---|---|---|
| 9.5 x 1200 | Unthreaded | 9.5 | CCBR-9512 |
| 14.5 x 1200 | 9/16" | 12.5 | CCBR-1412 |
| 14.5 x 1500 | 9/16" | 12.5 | CCBR-1415 |
| 14.5 x 1800 | 9/16" | 12.5 | CCBR-1418 |
| 16.0 x 1200 | 5/8" | 14.2 | CCBR-1612 |
| 16.0 x 1500 | 5/8" | 14.2 | CCBR-1615 |
| 16.0 x 1800 | 5/8" | 14.2 | CCBR-1618 |
| 16.0 x 2400 | 5/8" | 14.2 | CCBR-1624 |
| 20.0 x 1200 | 3/4" | 17.2 | CCBR-2012 |
| 20.0 x 1500 | 3/4" | 17.2 | CCBR-2015 |
| 20.0 x 1800 | 3/4" | 17.2 | CCBR-2018 |
| 20.0 x 2400 | 3/4" | 17.2 | CCBR-2024 |
| 25.0 x 2400 | Unthreaded | 25.4 | CCBR-2524 |
| 25.0 x 3000 | Unthreaded | 25.4 | CCBR-2530 |

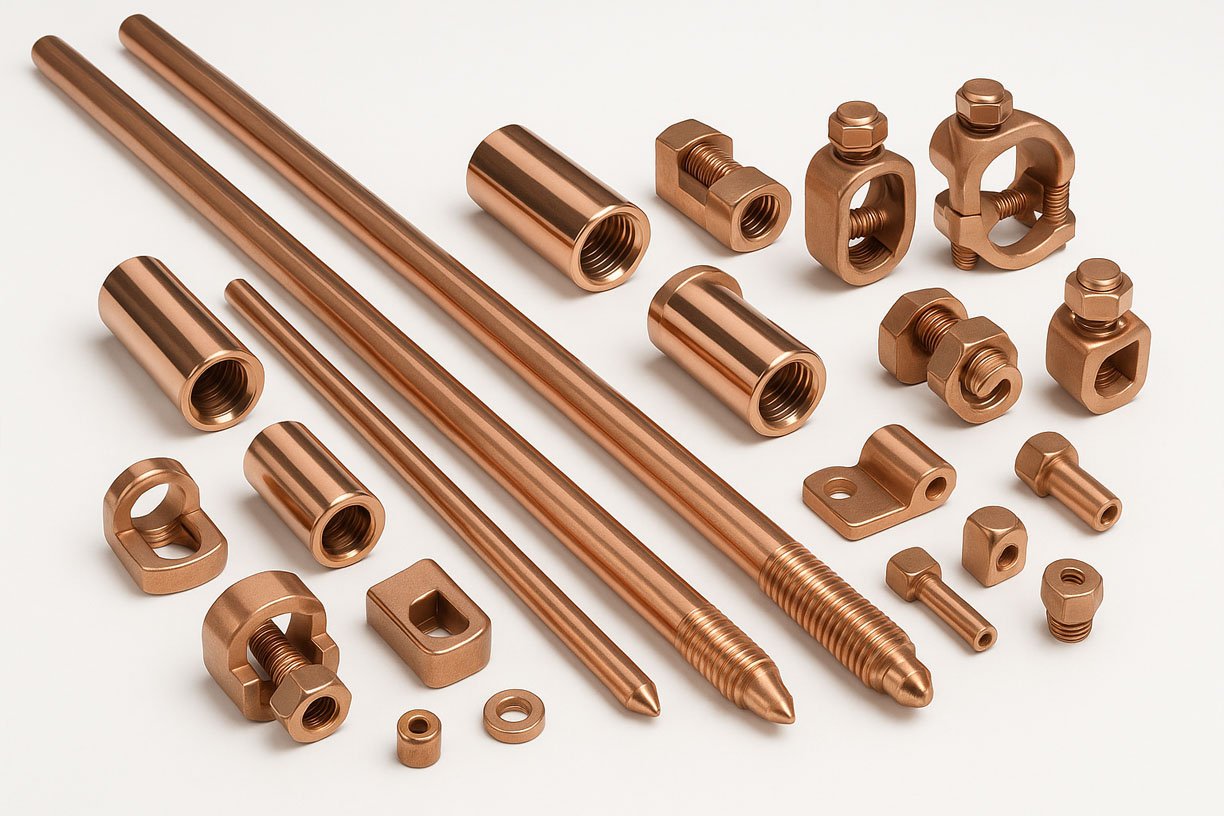

Complete Earthing System Components
Copper Bonded Earth Grounding Rods
High tensile low-carbon steel rods complying with BS 4360 Grade 43A, molecularly bonded with 99.99% pure copper. Available in 14 different size combinations from 9.5mm to 25mm diameter and 1200mm to 3000mm lengths.
Solid Copper Earth Rods
Premium solid copper earth rods available in externally threaded and internally threaded configurations, providing maximum electrical conductivity for critical earthing applications requiring superior performance.
Professional Earth Clamps
Comprehensive range including Rod to Tape Clamps, Rod to Conductor Clamps, and Rod to Cable Lug Clamps, providing secure connections between earthing rods and various conductor types for complete earthing systems.
Earthing System Accessories
Complete range of professional fittings including reusable high tensile steel driving heads, brass/aluminum bronze couplings, high strength alloy steel driving spikes, and phosphorous bronze internal couplings.
Professional Earthing and Lightning Protection Applications
Our comprehensive earthing equipment range serves critical applications including electrical power systems, telecommunications infrastructure, industrial facilities, lightning protection systems, and safety earthing installations. These components are essential for electrical safety, equipment protection, and compliance with earthing standards in power generation, transmission, distribution, and industrial applications requiring reliable earthing performance.
Key Benefits
- BS 4360 Grade 43A high tensile steel construction
- 99.99% pure copper molecular bonding
- Roll threading process for extra strength
- Benzol-triazole derivative treatment
- Comprehensive size range and configurations
- Professional packaging with protective caps
