Split Bolt Connectors Line Taps
Split Bolt Connectors Line Taps
Professional Line Tap and Split Bolt Connection Solutions
Engineered for reliable electrical connections, our comprehensive range of Brass Split Bolt Connectors, Line Taps, and Split Bolts delivers superior performance for professional electrical distribution applications. Manufactured from high tensile brass to BS 2874 CZ 112 standards, these connectors feature rolled threads for extra clamping force and extruded pressure pads to prevent cracking. Our complete product line includes Brass Split Bolt Connectors, Brass Line Taps, Copper Line Taps, and Copper Split Bolt Connectors, all available in natural brass and electro-tinned finishes. These components meet material and dimensional specifications of various international standards, ensuring optimal electrical conductivity and mechanical strength for long-term reliability in critical electrical distribution and line tapping applications.
Key Specifications
-
-
Conductor Range:
10mm² to 500mm²
-
Finish Options:
Natural & Electro-Tinned
Technical Specifications
High Tensile Brass Construction
Manufactured from high tensile brass to BS 2874 CZ 112 standards, providing superior mechanical strength, excellent electrical conductivity, and corrosion resistance for demanding electrical distribution applications.
Rolled Thread Technology
Threads are formed by rolling process rather than cutting, providing extra clamping force and superior mechanical properties for secure connections and reliable long-term performance in electrical applications.
Extruded Pressure Pads
Pressure pads are made from extruded bars (NOT CAST), preventing pad cracking and ensuring reliable conductor contact throughout the service life of the connector for consistent electrical performance.
International Standards Compliance
Manufactured to meet material and dimensional specifications of various international standards, ensuring compatibility and reliability across different electrical systems and applications worldwide.
Split Bolt Connector Specifications
| Conductor (mm²) | C Dimension (mm) | Product Code |
|---|---|---|
| 10 | 4.50 | SBC-10 |
| 16 | 6.00 | SBC-16 |
| 25 | 6.90 | SBC-25 |
| 32-35 | 8.10 | SBC-32 |
| 50 | 9.70 | SBC-50 |
| 70 | 11.2 | SBC-70 |
| 95 | 13.6 | SBC-95 |
| 100 | 14.0 | SBC-100 |
| 120 | 15.0 | SBC-120 |
| 150 | 16.6 | SBC-150 |
| 185 | 18.2 | SBC-185 |
| 240 | 21.4 | SBC-240 |
| 300 | 23.7 | SBC-300 |
| 400 | 26.2 | SBC-400 |
| 500 | 30.1 | SBC-500 |
Complete Split Bolt Connection Solutions

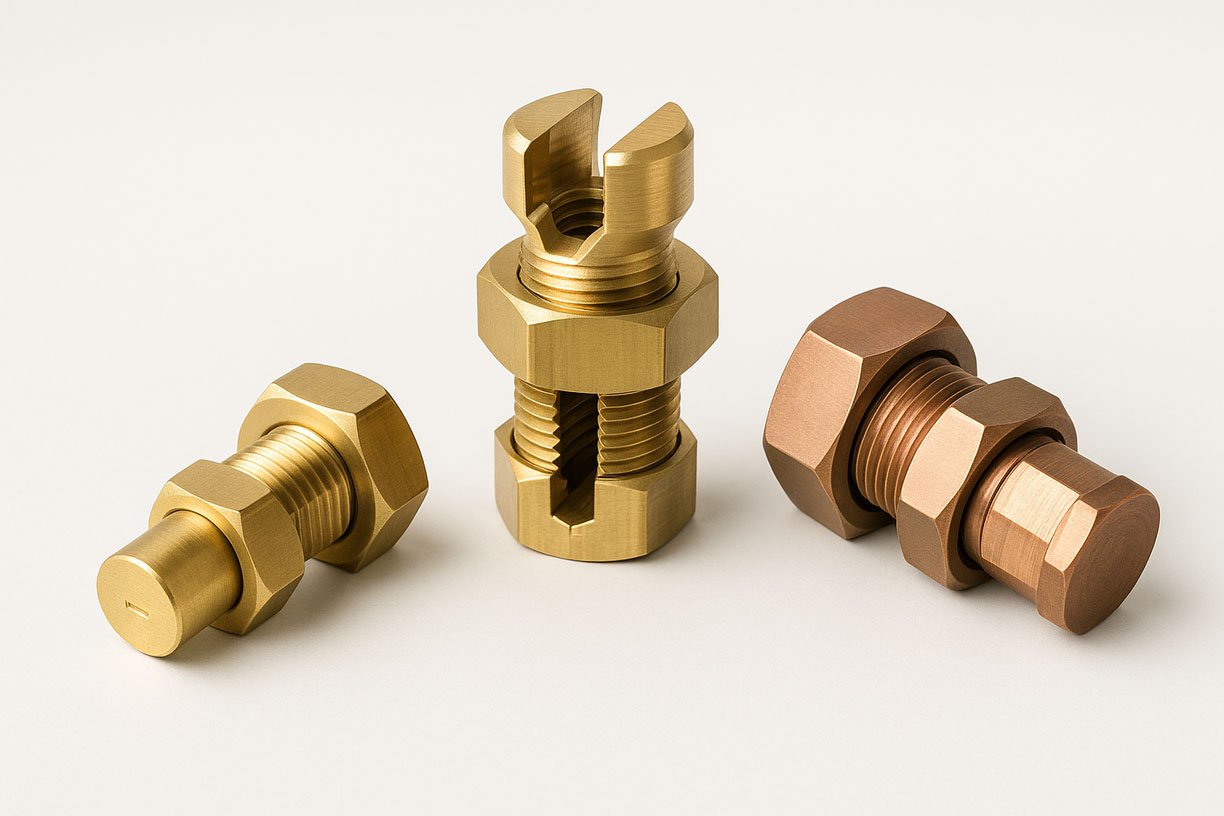

Brass Split Bolt Connectors
High tensile brass construction to BS 2874 CZ 112 standards with rolled threads for extra clamping force, available in 15 sizes from 10mm² to 500mm² conductor capacity with natural brass and electro-tinned finishes.
Brass Line Taps & Split Bolts
Professional line tapping solutions with extruded pressure pads to prevent cracking, designed for electrical distribution and power line applications requiring reliable conductor connections and tapping.
Copper Line Taps & Connectors
High conductivity copper construction for maximum electrical performance, available in the same comprehensive size range with superior conductivity characteristics for critical electrical applications.
International Standard Compliance
Manufactured to meet material and dimensional specifications of various international standards, ensuring global compatibility and reliability across different electrical systems and applications.
Electrical Distribution and Line Tapping Applications
Our comprehensive range of split bolt connectors serves critical electrical applications including utility power lines, industrial power systems, electrical infrastructure, line tapping applications, professional installations, and maintenance operations. These components are essential for reliable electrical connections where secure conductor joining and line tapping capabilities are required for optimal electrical performance and long-term reliability in demanding electrical distribution environments.
Key Benefits
- BS 2874 CZ 112 high tensile brass construction
- Rolled threads for superior clamping force
- Extruded pressure pads prevent cracking
- Comprehensive sizing from 10mm² to 500mm²
- Multiple material options - brass and copper
- International standards compliance
