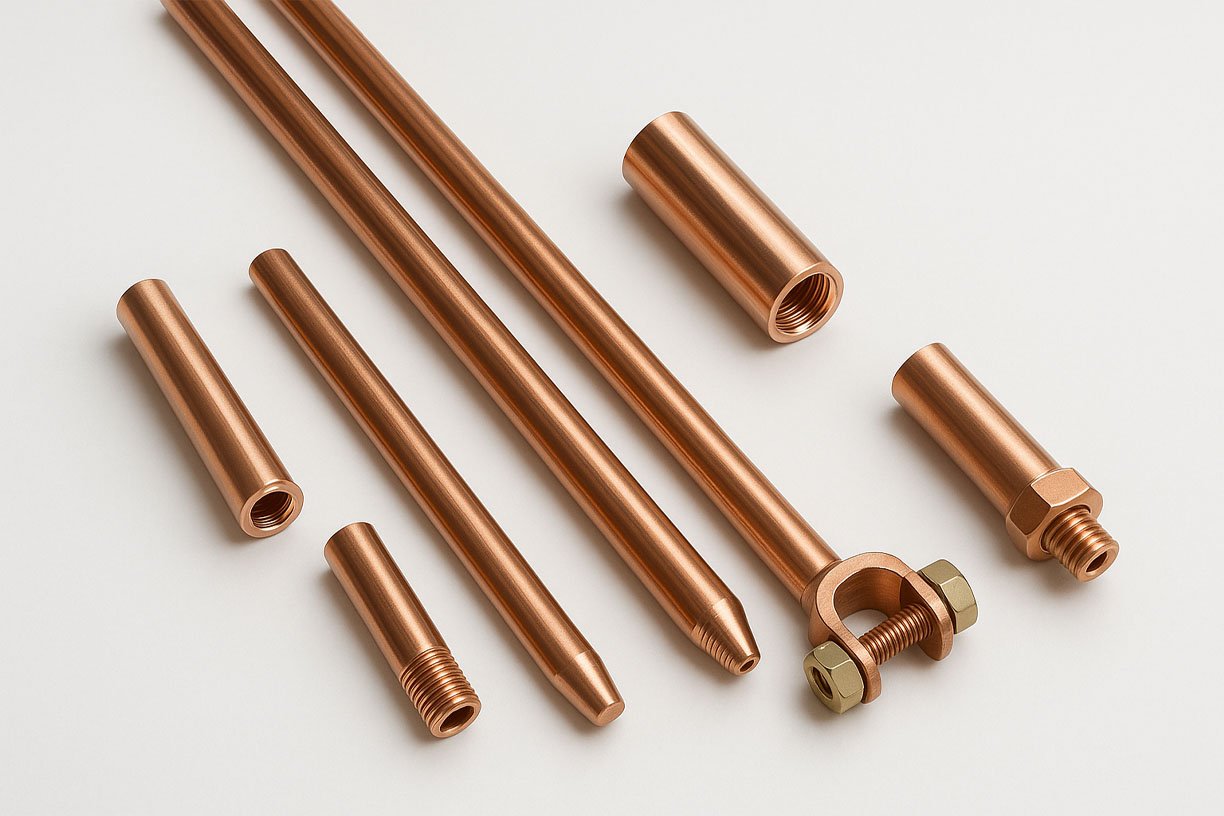

Copper Earthing Rods Grounding Rods
Copper Earthing Rods Grounding Rods
Complete Professional Earthing and Grounding System Solutions
Engineered for superior electrical grounding performance, our comprehensive range of Copper Bonded Earth Grounding Rods and Solid Copper Earth Rods delivers exceptional reliability for professional earthing installations. Manufactured from high tensile low-carbon steel to BS 4360 Grade 43A standards with 99.99% pure copper molecular bonding, these rods provide optimal electrical conductivity and corrosion resistance. Our complete earthing system includes Copper Bonded Grounding Rods, Solid Copper Earth Rods, Earth Clamps (Rod to Tape, Rod to Conductor, Rod to Cable Lug), and professional installation accessories including driving heads, couplings, and driving spikes. Each rod is treated with Benzol-triazole derivatives and features roll-threaded construction for enhanced strength and installation reliability in critical grounding applications.
Key Specifications
-
-
Copper Purity:
99.99% Pure Copper
-
Size Range:
9.5mm to 25mm Diameter
Technical Specifications
BS 4360 Grade 43A Construction
Manufactured from high tensile low-carbon steel to BS 4360 Grade 43A standards, providing exceptional mechanical strength and durability for demanding grounding applications in various soil conditions.
99.99% Pure Copper Bonding
Each grounding rod features molecular bonding with 99.99% pure, high conductivity copper, ensuring optimal electrical performance and superior corrosion resistance for long-term reliability.
Advanced Corrosion Protection
Each rod is treated with Benzol-triazole derivatives for enhanced corrosion protection, ensuring long-term performance and reliability in harsh underground environments and various soil conditions.
Roll Threading Technology
Threads are formed by roll threading process, providing extra strength and eliminating the risk of thread chipping during installation, ensuring secure connections and reliable performance.
Copper Bonded Earth Rod Specifications
| Rod Dimension (mm) | Thread Diameter | Actual Rod Dia. (mm) | Component No. |
|---|---|---|---|
| 9.5 x 1200 | Unthreaded | 9.5 | CCBR-9512 |
| 14.5 x 1200 | 9/16" | 12.5 | CCBR-1412 |
| 14.5 x 1500 | 9/16" | 12.5 | CCBR-1415 |
| 14.5 x 1800 | 9/16" | 12.5 | CCBR-1418 |
| 16.0 x 1200 | 5/8" | 14.2 | CCBR-1612 |
| 16.0 x 1500 | 5/8" | 14.2 | CCBR-1615 |
| 16.0 x 1800 | 5/8" | 14.2 | CCBR-1618 |
| 16.0 x 2400 | 5/8" | 14.2 | CCBR-1624 |
| 20.0 x 1200 | 3/4" | 17.2 | CCBR-2012 |
| 20.0 x 1500 | 3/4" | 17.2 | CCBR-2015 |
| 20.0 x 1800 | 3/4" | 17.2 | CCBR-2018 |
| 20.0 x 2400 | 3/4" | 17.2 | CCBR-2024 |
| 25.0 x 2400 | Unthreaded | 25.4 | CCBR-2524 |
| 25.0 x 3000 | Unthreaded | 25.4 | CCBR-2530 |
Complete Earthing System Solutions
Copper Bonded Earth Grounding Rods
High tensile low-carbon steel construction with 99.99% pure copper molecular bonding, available in 14 different size combinations from 9.5mm to 25mm diameter with various length options.
Solid Copper Earth Rods
Premium solid copper construction available in externally and internally threaded configurations, providing maximum electrical conductivity for critical grounding applications.
Earth Clamps & Connections
Complete range including Rod to Tape Clamps, Rod to Conductor Clamps, and Rod to Cable Lug Clamps for comprehensive earthing system connectivity and professional installations.
Installation Accessories
Professional accessories including reusable high tensile steel driving heads, brass/aluminum bronze couplings, high strength alloy steel driving spikes, and phosphorous bronze internal couplings.
Professional Grounding and Earthing Applications
Our comprehensive earthing rod systems serve critical applications including electrical power systems, telecommunications infrastructure, industrial facilities, lightning protection systems, safety earthing, and utility infrastructure projects. These components are essential for reliable electrical grounding where superior conductivity, corrosion resistance, and long-term performance are required in demanding underground environments and various soil conditions.
Key Benefits
- BS 4360 Grade 43A high tensile steel construction
- 99.99% pure copper molecular bonding for optimal conductivity
- Benzol-triazole derivative corrosion protection
- Roll threading process for enhanced installation strength
- Professional packaging with protective caps
- Complete system solutions with accessories and clamps
